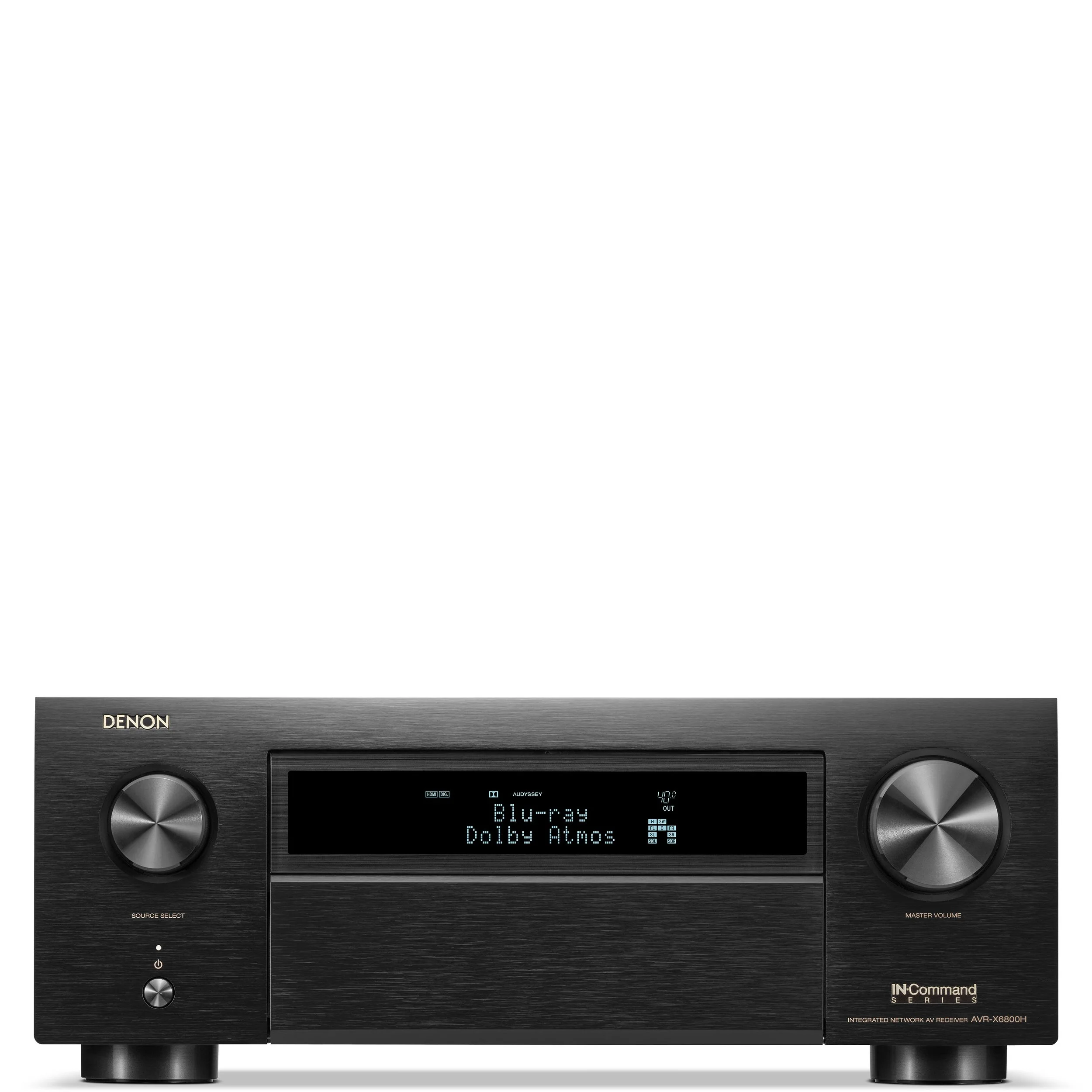

Denon AVR-X6800H
A high performance 11.4 surround sound receiver with Dolby Atmos, DTS:X, IMAX Enhanced and Auro 3D, 8K HDMI video, 3D audio, and HEOS music streaming.
$4,299
Buy today! Normally in stock for purchase.
Made in Japan.
Creative Audio is an authorised Denon dealer.
Advantages of this AV Receiver
11 channels of discrete high-current amplification for a more immersive 3D audio experience.
Dirac Live ready for state-of-the-art room correction.
Includes an MM Phono input for your turntable as well as hi-res HEOS digital audio streaming.
Image Gallery
High Performance Amplification
The discrete eleven-channel high-current monolithic amplifier section delivers a substantially improved sonic experience when compared to Denon’s less expensive AVR models. With Dolby Atmos you will enjoy a 3D audio experience with or without dedicated height speakers. DTS:X delivers immersive, multi-dimensional audio and DTS Neural:X upmixing brings added realism for legacy content. The AVR-X4800H also includes IMAX Enhanced and Auro-3D processing for the ultimate in immersive sound.
Hi-res Streaming Music
With HEOS hi-res multiroom streaming you can access music from your favourite online streaming services. Add Denon Home speakers to other rooms and play the same song in every room or select a different song for each room. Control is easy using the HEOS app. Supports hi-res ALAC, FLAC, and WAV files up to 24/192. Also supports DSD 2.8MHz and 5.6MHz.
Stunning 8K Video
Denon AV receivers deliver pristine 8K images with support for passthrough as well as upscaling of 4K content. HDCP 2.3 support ensures maximum compatibility with today’s UltraHD sources. Supports HDR, Dynamic HDR, and HDR10+ for optimal reproduction of shadows and highlights.
Sound Advice
Ensure there is at least 3 inches of clearance above the receiver for adequate ventilation and never place it in a closed cabinet.
Denon AVR-X6800H Technical Specifications
Amplifiers
Number of Power Amps
11
Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive)
140 W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)
175 W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive)
250 W
Inputs/Outputs
Composite In
2
Component In
1
HDMI In/Out
7 / 3
Multiroom HDMI Out
Analog In
6
Phono (MM) In
Yes
Digital in: Optical/Coaxial
2 / 2
Multi-Room Out: Analog/Digital
2 / No
Multichannel Pre-Out
Yes (13.4)
Subwoofer Out
4 (independent)
Gold-plated Speaker Terminals
Number of Speaker Terminals
13
Speaker A / B
Assignable
Bi-amp Drive
Assignable
Multi-Room Speaker Terminal
Assignable
USB Audio Input Front
Yes
USB Power 5V/1.5A Rear
Yes
AM/FM Tuner
Yes
HDMI
HDMI Inputs
7 (3x 8K)
HDCP 2.3 Support
Yes
HDMI Outputs: Main/Zone
2 / 1
Video conversion Analog -> HDMI
HDMI to HDMI Scaling 1080P/4K to 8K
HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB
Yes, Yes
HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR
ALLM (Auto Low Latency Mode) Pass-through for gaming
Variable Refresh Rate, Quick Flame Transport
3D Signal Pass-through
8K Signal Pass-Through, Scaling, GUI Overlay
DSD Audio Compatible
Audio Return Channel (ARC), Enhanced ARC
Auto LipSync
Dimensions and Weight
Maximum Dimensions (W x D x H)
Antenna:Horizontal
17.1” × 15.3” × 6.6”
Antenna:Vertical
17.1” × 15.3” × 9.3”
Weight
34.4 lbs
Carton Weight (inc. product)
40.1 lbs
