MartinLogan Dynamo Foundation 10
Uniquely capable and ultimately affordable. The Dynamo Foundation 10 delivers deep bass with speed and control, enhancing rather than detracting from the quality of your surround sound system.
$649.99
Special order.
Creative Audio is Winnipeg’s authorised MartinLogan dealer.
Image Gallery
Creative Audio Pro Tips
Like all subwoofers, careful positioning of the MartinLogan Dynamo Foundation 10 will allow you to get the best performance.
It may sound like a salesman’s line but two subs are always better than one: two subwoofers will deliver not only greater low-bass resolution and depth but also a more even balance of low frequencies throughout the listening room. We always recommend planning for two subwoofers in any surround sound system.
MartinLogan Dynamo Foundation 10 Technical Specifications
(reprinted from MartinLogan)
Frequency Response:
25–200 Hz ±3 dB (Anechoic via LFE input)
Low Frequency Transducer:

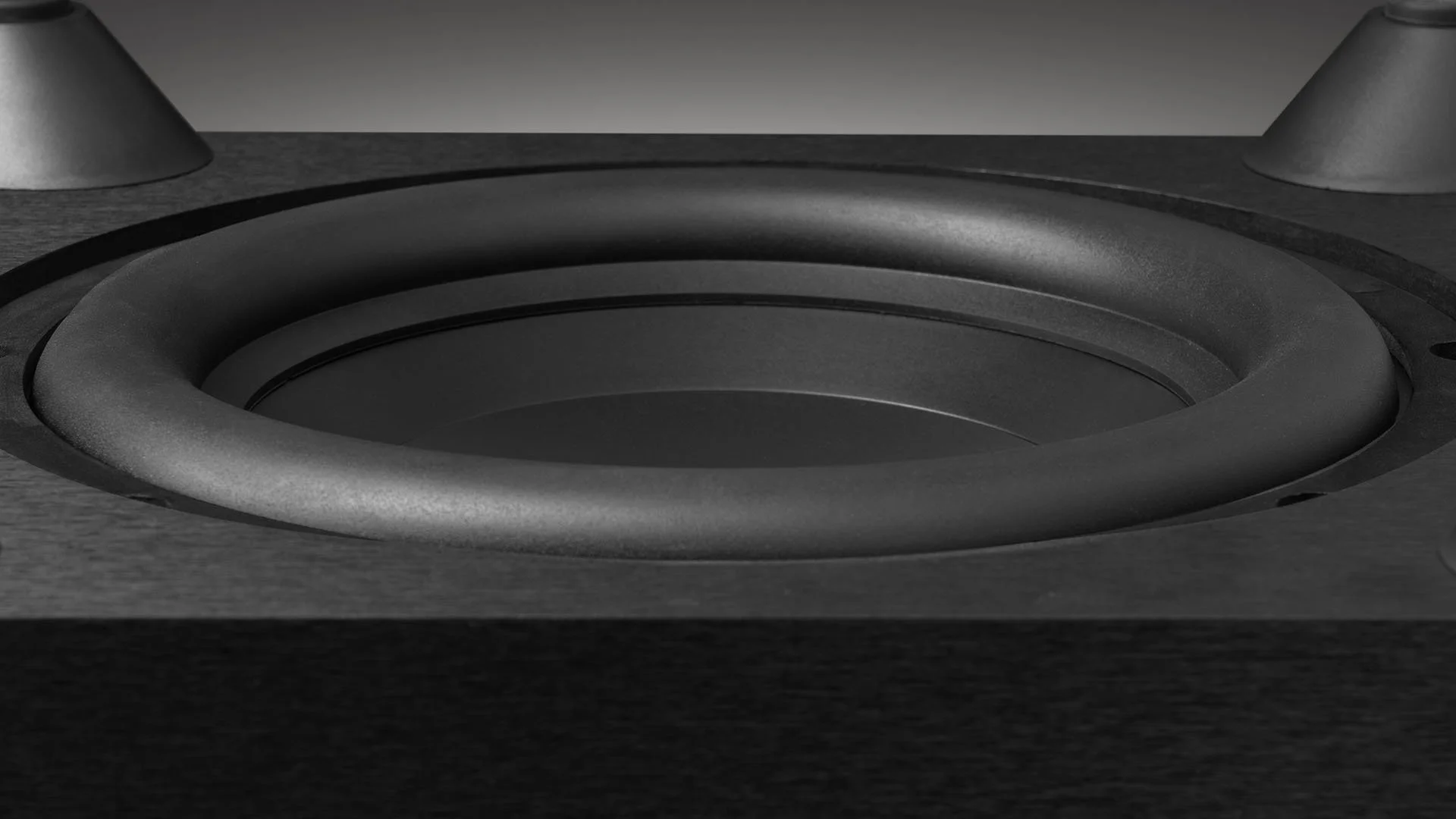

10” (25.4cm) high-excursion, Ultra-rigid Polypropylene (URP) cone in a stamped steel basket
Amplifier:
Magnitude ® MT-400 Amplifier with 400 watts peak (200 watts continuous)
Digital Signal Processing:
High-resolution 200MHz DSP engine with 56-bit processing
Cabinet:
Sealed MDF cabinet with reinforced MDF woofer baffle
Controls (on backplate):
Level: Min–Max
Low-Pass Filter: 40Hz-Bypass
Power Mode: On, Auto
Phase: 0°, 180°
Inputs:
Line Level: Left, Right/LFE
Wireless Input:
WSK-1 Kit Sold Separately
Feet:
Non-Slip
Weight:
23.8 lbs. (10.8 kg)
Dimensions (HxWxD):
13" x 12-3/4" x 12-3/4"
Finish:
Brushed black vinyl with high-gloss top
