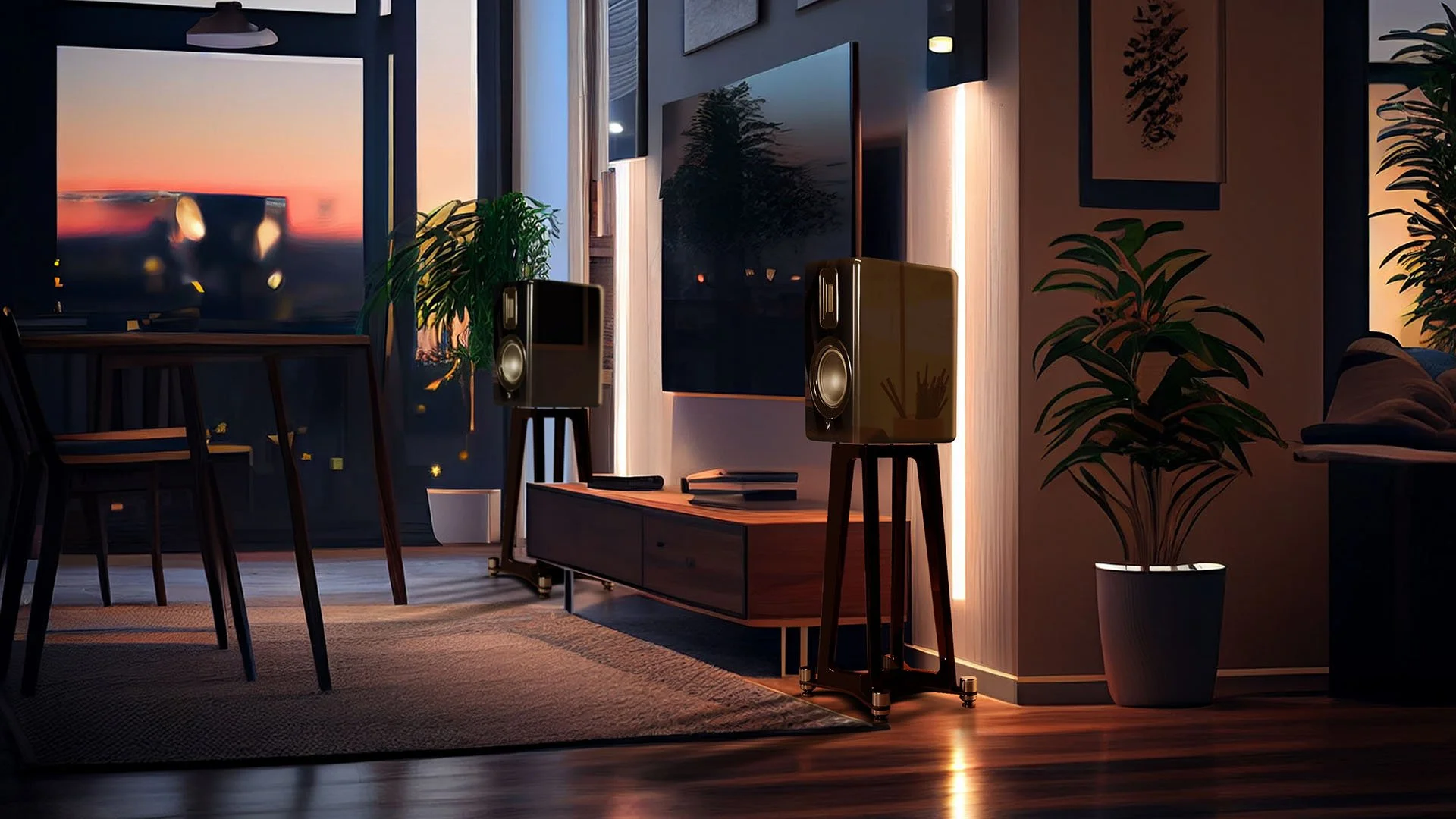

QUAD Revela 1 with stands
$4,250 (pair)
A bookshelf speaker with a 6.5” bass driver and a 1” x 2.4” true ribbon tweeter. Voiced by Peter Comeau, the speaker delivers an astonishing level of realism and musical clarity.
Buy today! This item is currently in stock (walnut).
Available to audition in Winnipeg at Creative Audio.
Creative Audio is an authorised QUAD dealer.
“If there are any issues with Quad’s Revela 1, it’s that it is too good. Grab a pair before Quad figures out they’re underpriced. Even with nine months to go, this is my product of 2024. ”
Image Gallery
The Creative Audio Review
This is a brand new product to our showroom and we haven’t had a chance to put it through its paces yet. Watch this space!
Creative Audio Pro Tips
The QUAD Revela 1 will sound great right out of the box, but will sound even better after 100 hours of use.
Do experiment with placement in relation to the wall behind the speakers. For best results we recommend a minimum distance of 6-12”.
We always recommend quality cables from your amplifier to get the most out of your speakers.
QUAD Revela 1 with stands Technical Specifications
Enclosure Type:
Bass reflex
Design:
2-way
Bass Driver:
165mm advanced fibre cone
Treble Driver:
27 x 60mm true ribbon
Sensitivity (2.83V @lm):
86dB
Recommended Amplifier Power:
30-120 watts
Peak Power Handling:
120 watts
Peak SPL:
102dB
Nominal Impedance:
6 ohms
Minimum Impedance:
4.1 ohms
Frequency Response ( + / -3dB):
54Hz - 24kHz
Bass Extension (-6dB):
40Hz
Crossover Frequency:
2.9kHz
Dimensions (HxWxD, speaker)
15.6” x 9.7” x 12.3”
Finish Options:
Piano Black, Piano Walnut
